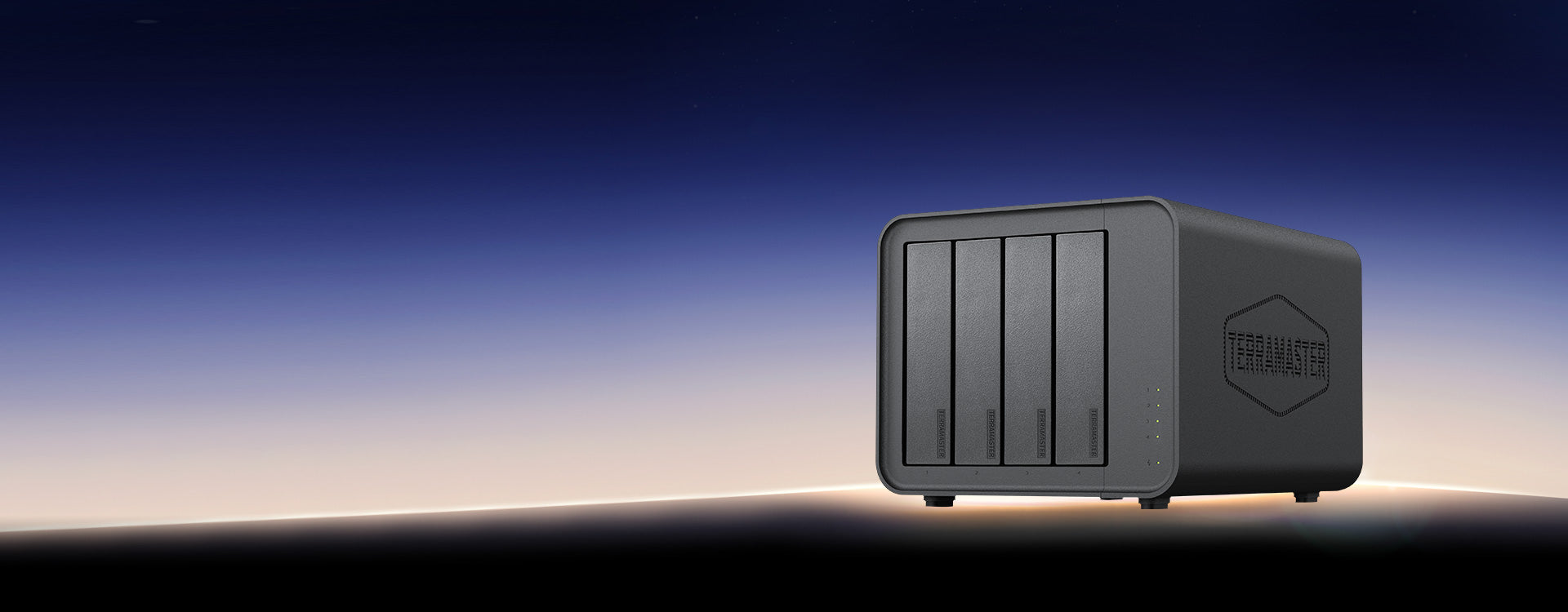

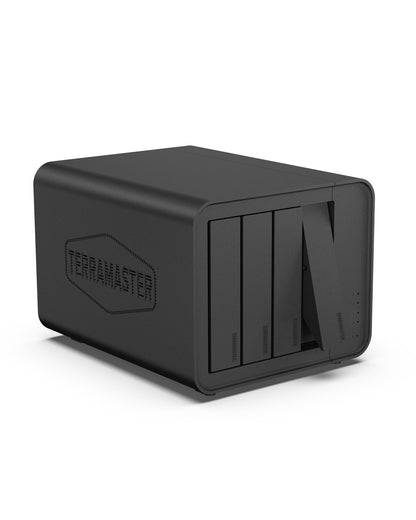

TerraMaster D8 Hybrid 8-Bay Hybrid RAlD Enclosure

8-Bay Hybrid RAlD Enclosure

ideal Solution for Hot and Cold Data

Using the D8 Hybrid as a storage expansion device for Windows, Mac, or Linux computers is an excellent choice. By combining 4 x 24TB SATA HDDs with 4 x 8TB high-speed M.2 NVMe SSDs, it offers a maximum capacity of up to 1​28TB, providing abundant storage space for your extensive data needs.

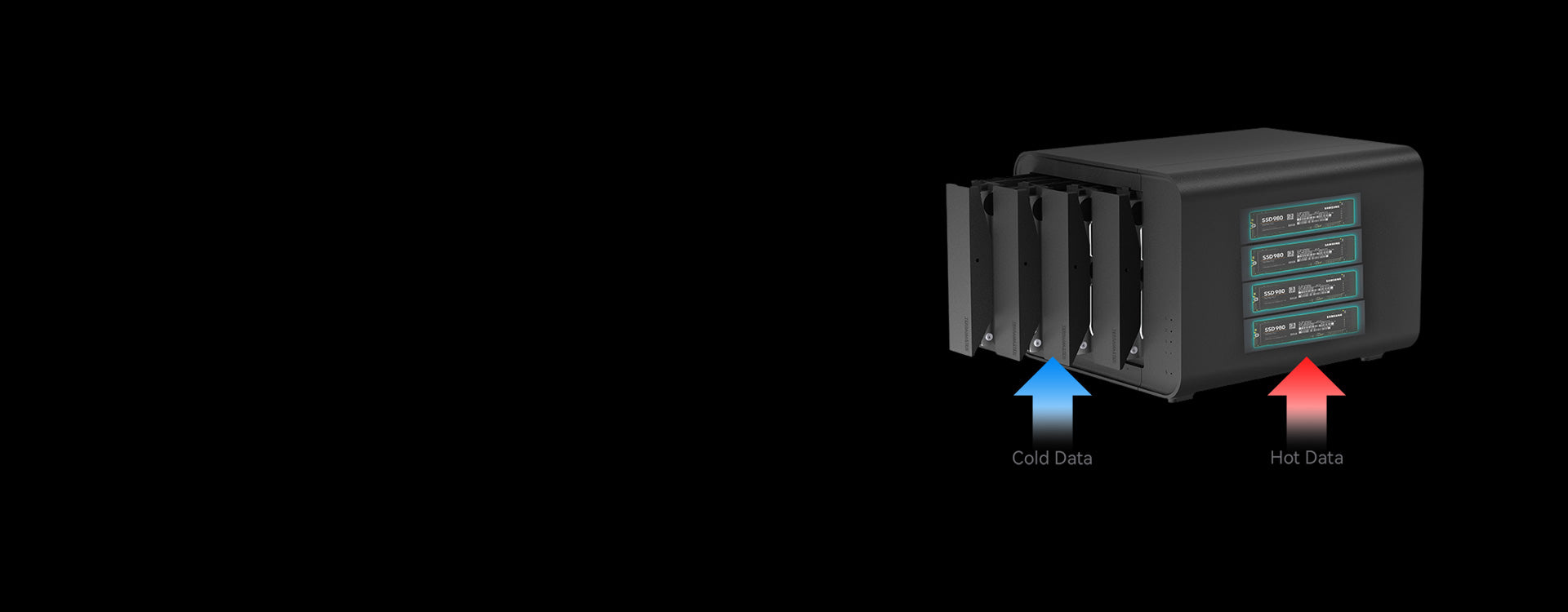

Tailor your storage setup to your data’s needs and usage patterns. Leverage the large capacity advantage of mechanical hard drives and the high-speed read/write performance of M.2 SSDs. Users have the flexibility to manually select where to store their data based on type and frequency of usage, optimizing storage efficiency and access speed. This approach ensures swift access to hot data stored on high-speed SSDs, while cold data is stored economically and efficiently on HDDs.

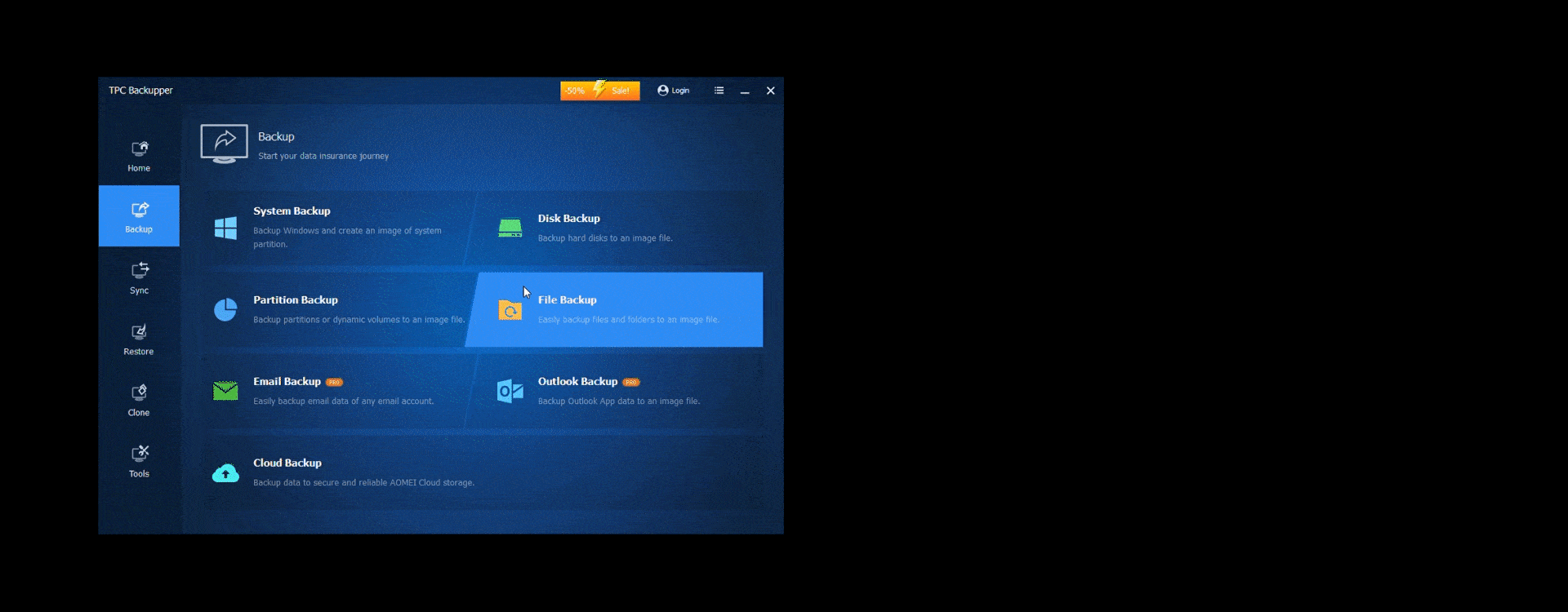

Say goodbye to data worries with our complimentary TerraMaster TPC Backupper software! Back up your Windows PC data with ease, featuring incremental and differential backup strategies for stress-free and secure data storage.*For Mac users, you can seamlessly utilize the built-in Time Machine feature for backup purposes.

TPC Backupper

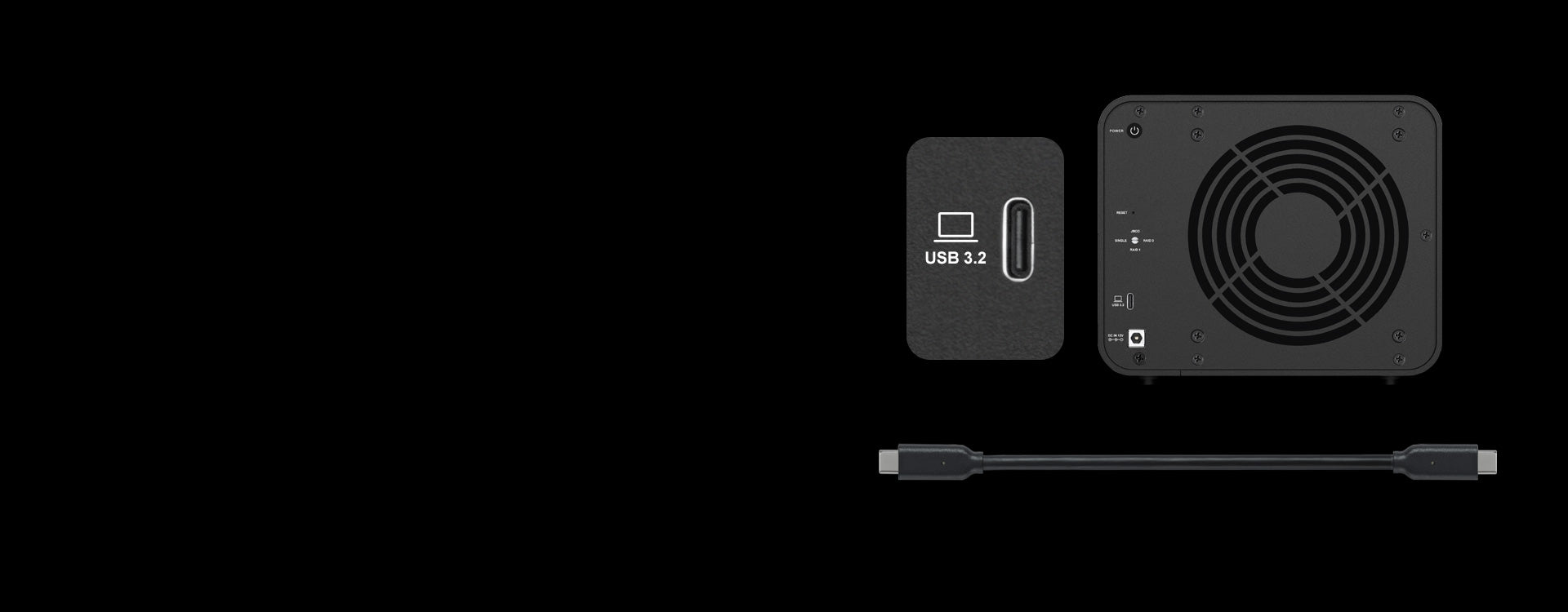

The D8 Hybrid features a USB Type-C interface, offering excellent compatibility with various protocols, including USB 3.0, USB 3.1, USB 3.2, USB4, Thunderbolt 3, and Thunderbolt 4. A complimentary 0.8m USB Type-C to C cable is included. The interface is compatible with Windows 7 and later, macOS X 10.6 and later, and Linux Ubuntu 16/18/20.

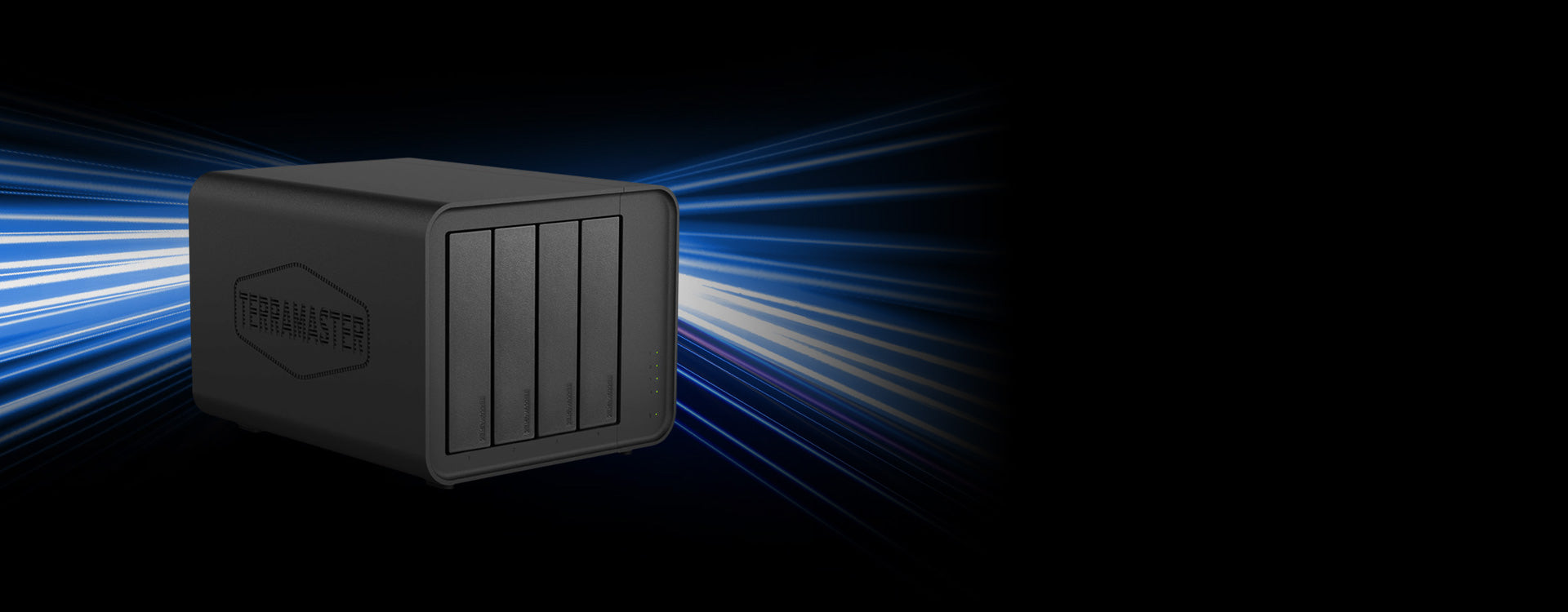

Get ready for lightning-fast data transmission! With USB 3.2 Gen 2 protocol, enjoy a blazing transfer bandwidth of up to 10Gbps. Experience maximum speeds across three different storage mediums and hardware environments.

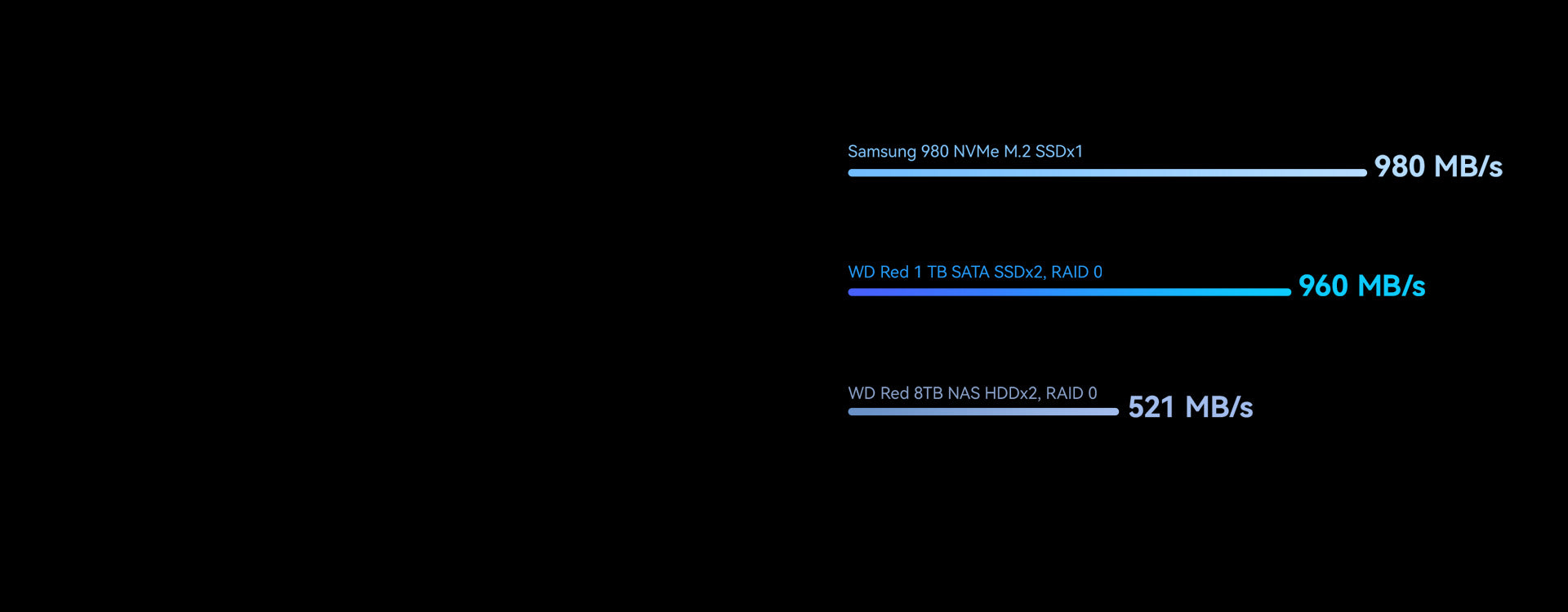

Speed Test

Harness the lightning-fast read speeds of up to 980 MB/s with a single M.2 SSD (Samsung 980 NVMe M.2 SSDx1).

Achieve blazing performance of up to 960 MB/s using SATA SSDS in RAID 0 configuration (WD Red 1 TB SATA SSDx2, RAID O).

Even with HDDs in RAlD 0, enjoy swift read speeds of up to 521 MB/s (WD Red 8TB NAS HDDx2, RAID O).

When transfering a 10GB HD movie file, using the D8 Hybrid can complete the transfer in approximately 10 seconds, greatly enhancing work efficiency.

For users who require real-time editing or processing of high-resolution videos, the fast data read speed ensures a smooth working experience, reducing wait time & boostion productivity.

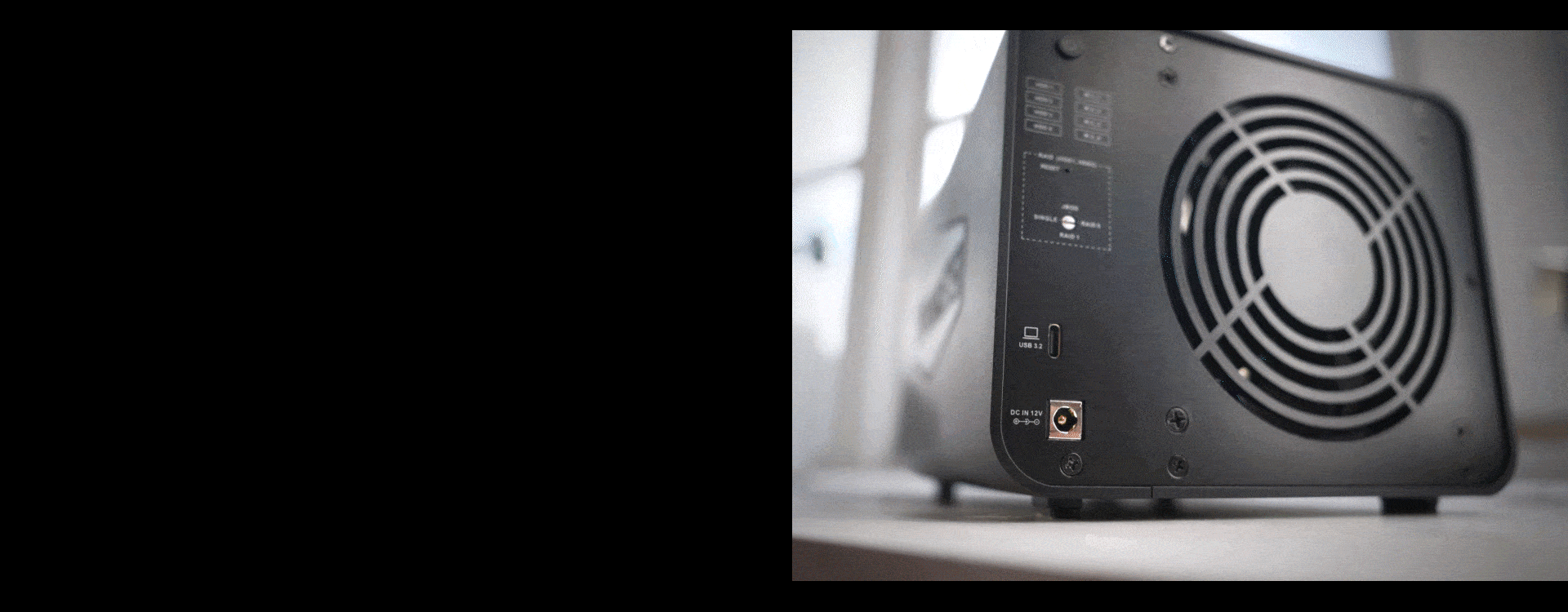

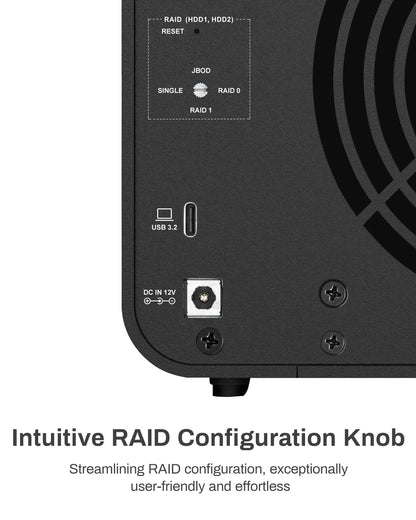

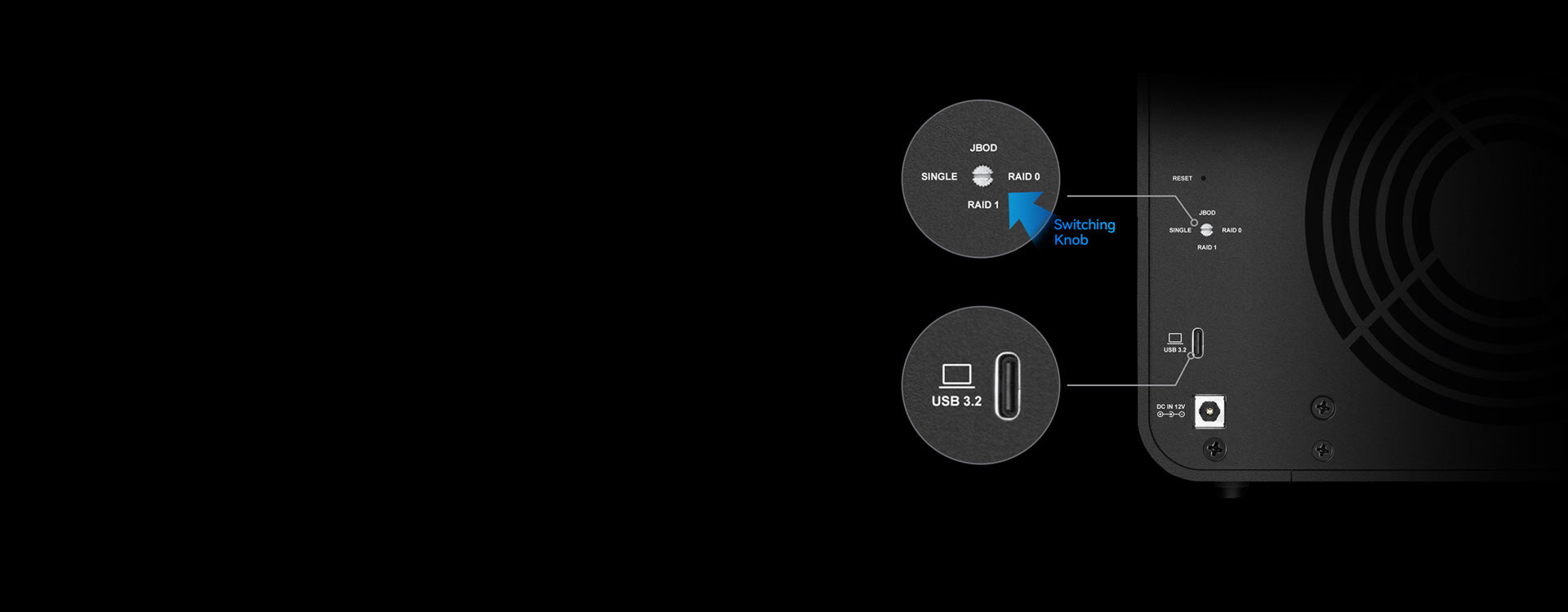

The D8 Hybrid features a hardware mode switch design, allowing HDD1 and HDD2 to quickly set the RAID mode through a manual switching knob. This creates an ultra-large-capacity storage space with a RAID data protection mechanism for computers.

Video Guide

The D8 Hybrid supports various file system formats including NTFS, APFS, EXT4, FAT32, and exFAT. Its support for the exFAT file system, which can handle large files, allows hard drives formatted with the exFAT file system on the D8 Hybrid to be read and written across devices running different operating systems such as Windows, Mac, and NAS, providing a convenient cross-platform solution for large file transfers.

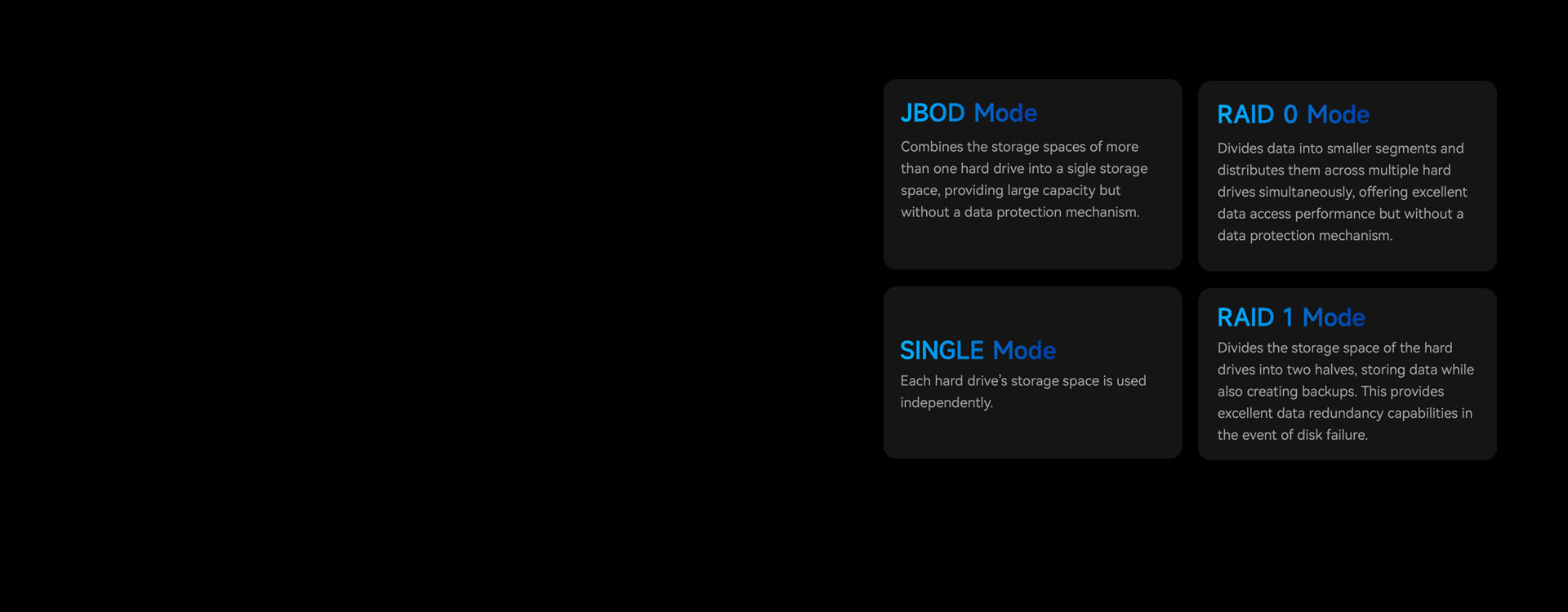

The D8 Hybrid supports four hardware adjustment modes: SINGLE, JBOD, RAID 0, and RAID 1.

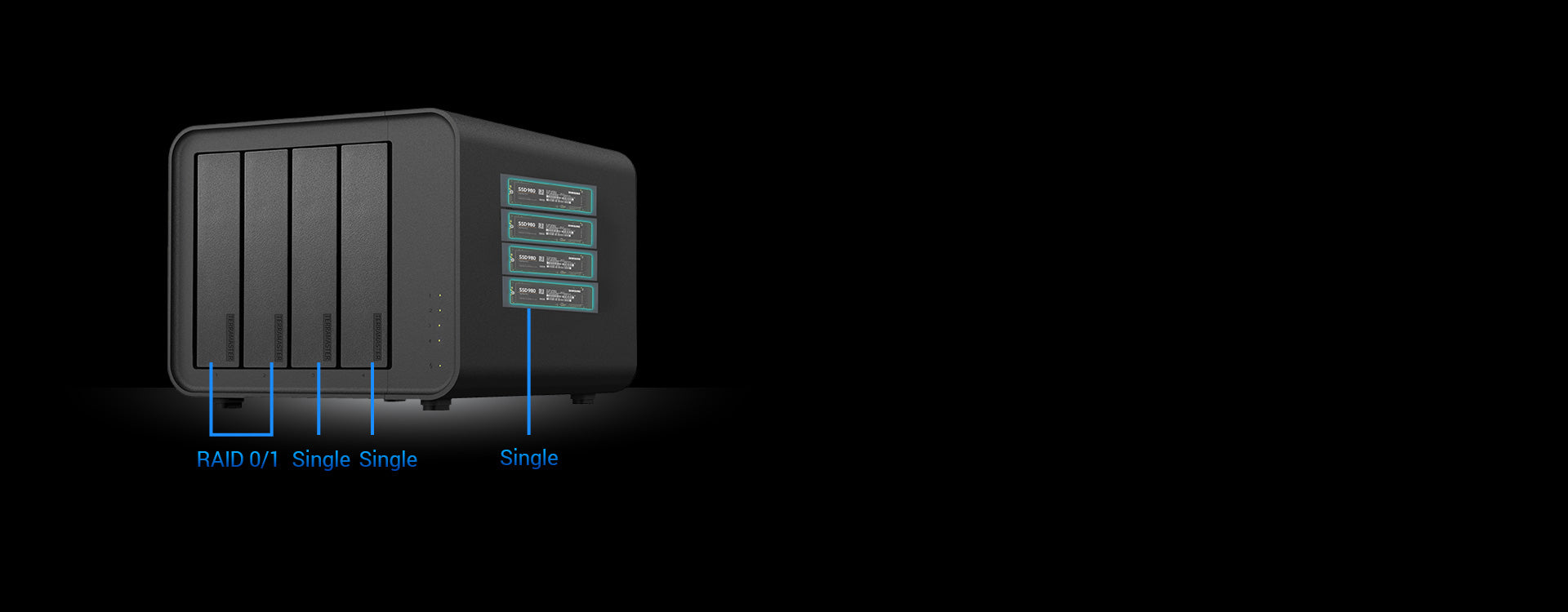

Dive into the uniqueness of our 2+6 RAID mode! Slots 1 & 2 offer a playground for RAID 0/1/JBOD configurations, ensuring your data’s absolute security. Meanwhile, slots 3 & 4 and M.2 NVMe SSDs stand strong as independent guardians, catering to your every storage whim.

The D8 Hybrid is an ideal choice for expanding the NAS capacity of a home or small office. Simply connect the D8 Hybrid to the USB port of your NAS device, and you can easily expand the NAS storage space.

You can even use the D8 Hybrid as an external DAS storage device for Te​rraMaster NAS. Both TOS 5 and the latest TOS 6 systems support creating new volumes using the four HDDs and four M.2 SSDs of the D8 Hybrid, and utilizing the full range of TerraMaster NAS storage features, such as setting up storage pools, various RAID modes, and enabling snapshots.

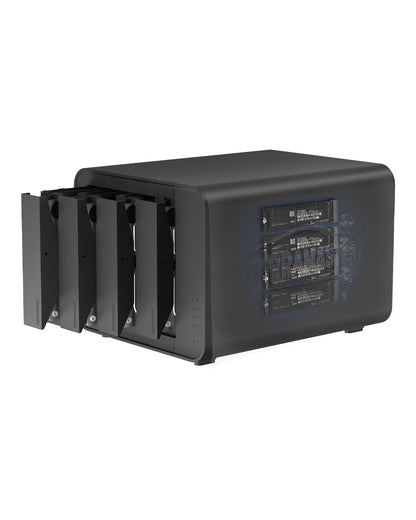

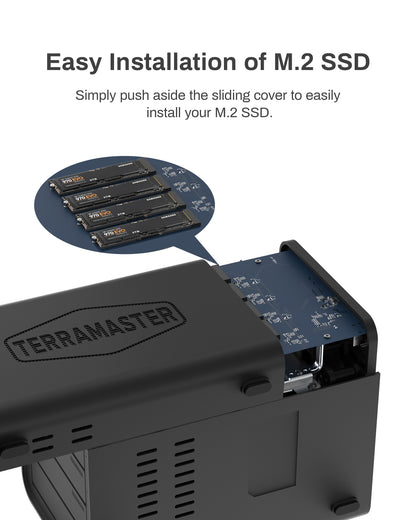

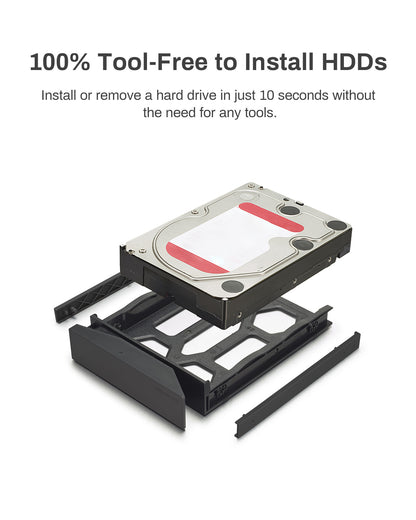

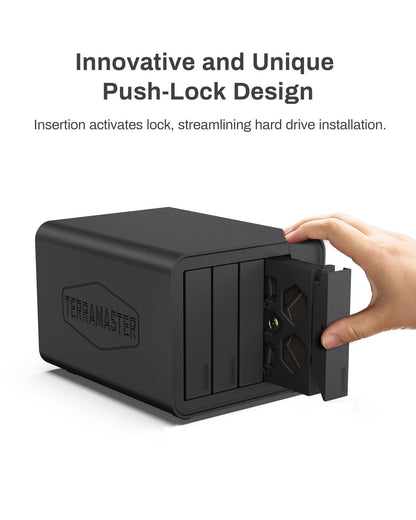

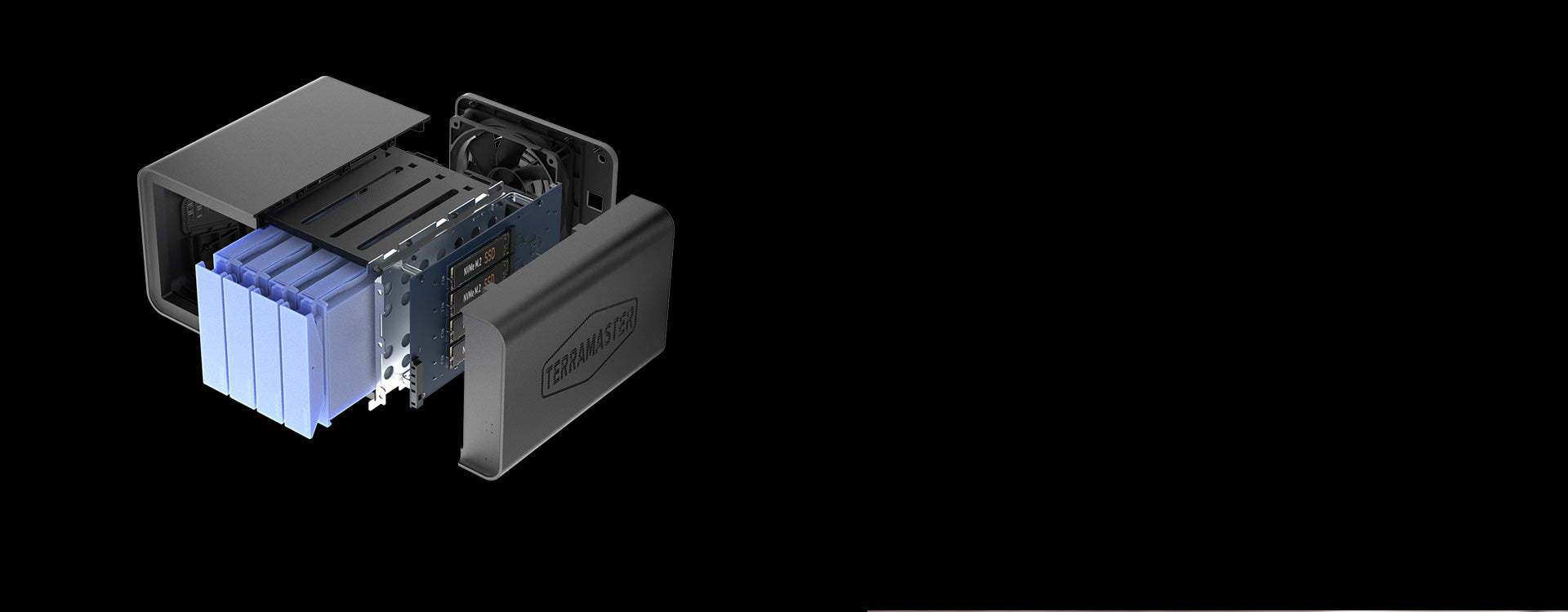

Enjoy tool-free HDD tray swaps with Push-Lock auto-locking, preventing any accidental disconnections. Plus, slide in M.2 SSDs with specially designed covers & screws for a speedy 5-second install!

Video Guide

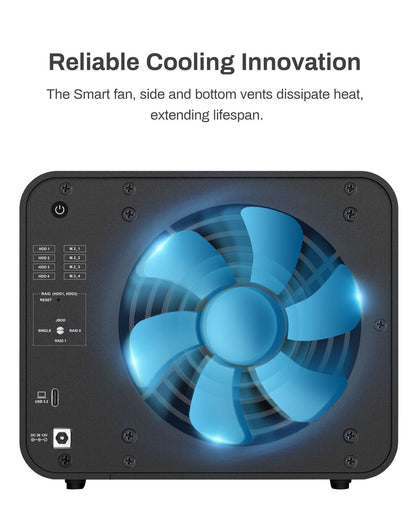

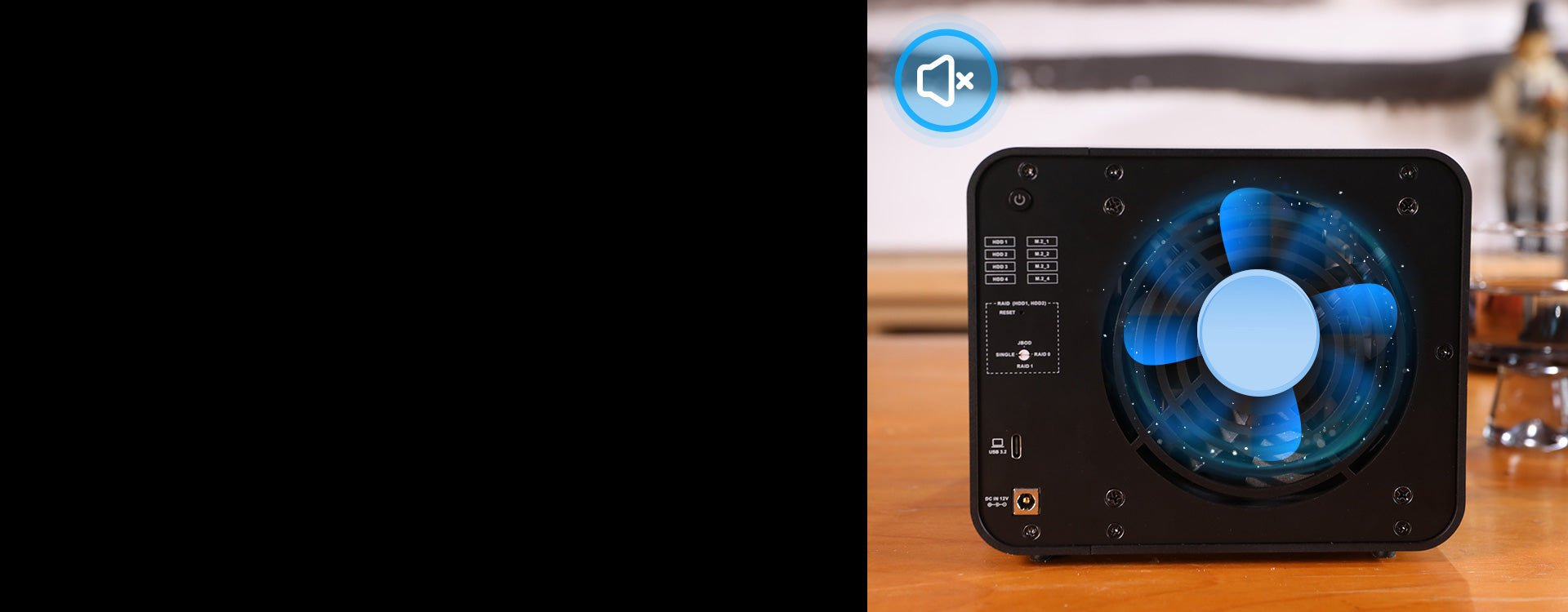

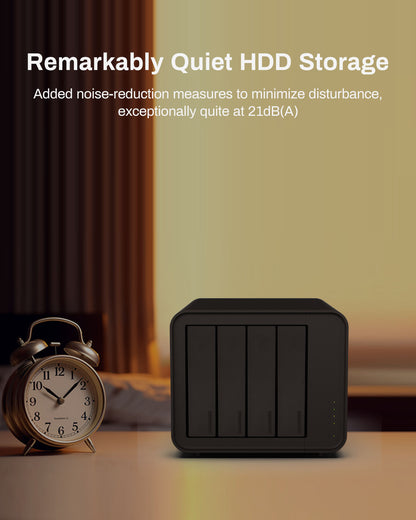

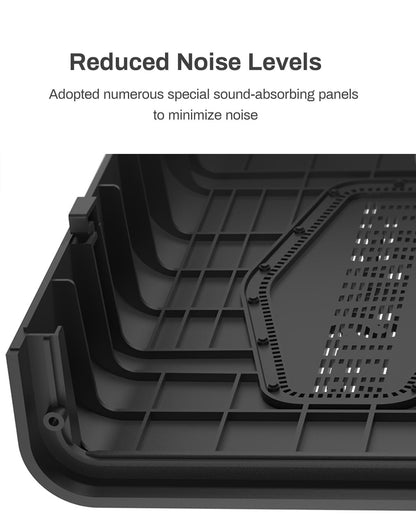

Our intelligent cooling system, coupled with super quiet design, ensures your hard drives stay cool and your workspace stays serene. With automatic fan speed adjustment based on hard drive temperature and noise levels as low as 21dB, enjoy optimal performance without the extra noise!

The D8 Hybrid supports hard disk sleep mode, syncing with the computer system’s sleep mode. This feature efficie​ntly reduces hard disk usage, minimizes power consumption, and extends disk lifespan.

This product features a power-on recovery memory function, intelligently handling various power loss scenarios. When the D8 Hybrid is shut down properly, it remains off when power is restored. However, if the device shuts down due to an abnormal power outage, it will automatically power on when electricity is restored. This feature makes the D8 Hybrid an excellent choice for integration with servers, NAS devices, and other systems, enabling automated and unattended management.
