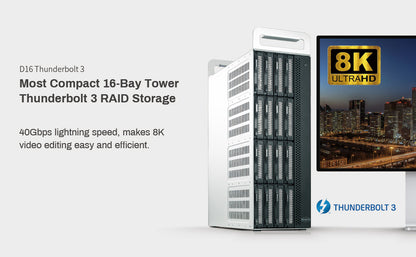

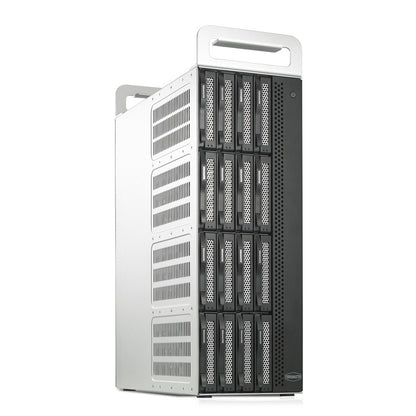

TERRAMASTER D16 Thunderbolt 3 Most Compact Professional External Hard Drive RAID Storage
TERRAMASTER D16 Thunderbolt 3 Most Compact Professional External Hard Drive RAID Storage

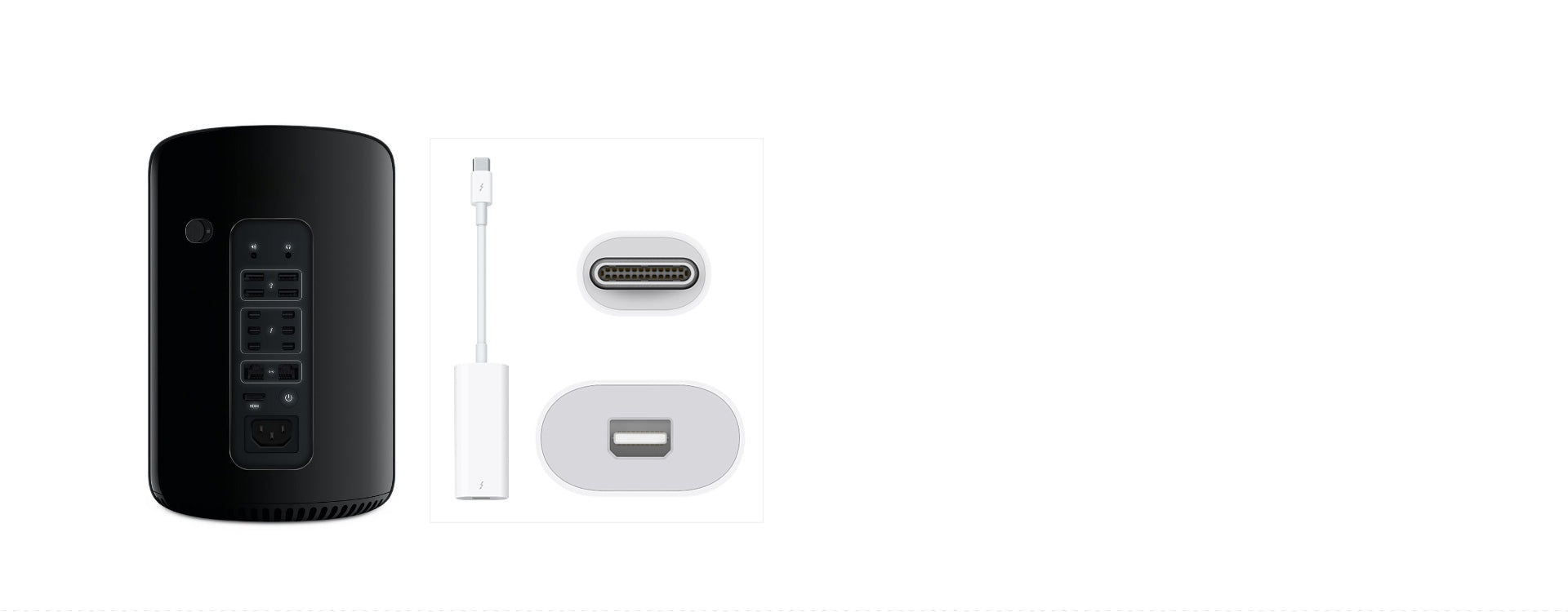

- [Veritable Hardware RAID Controller] D16-Thunderbolt3 is equipped with the latest dedicated RAID chip and high-speed cache memory to complete all RAID processing, which can provide true high-performance hardware RAID protection to ensure stable and high-performance data transmission. It issuitable for a video editor that works with real-time multi-channel HD and 8K video streams. Starting from March 26th, 2021, Mac with M1 security chip was fully supported.

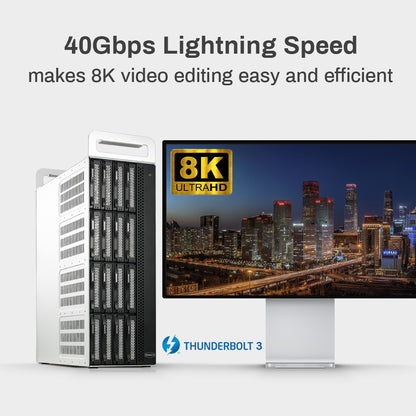

- [Lightning Fast Dtorage for Video Editing] Drawing on a pair of Thunderbolt 3 interfaces (40 Gbps) and a hardware RAID controller, the D16 Thunderbolt 3 can operate at transfer speeds of 2100 MB/s in RAID 0 array mode with 16 SSDs. Under RAID 5, the device can achieve a speed of 1800 MB/s. It works with the computers with Thunderbolt 3 or 4 port, NOT compatible with USB port.

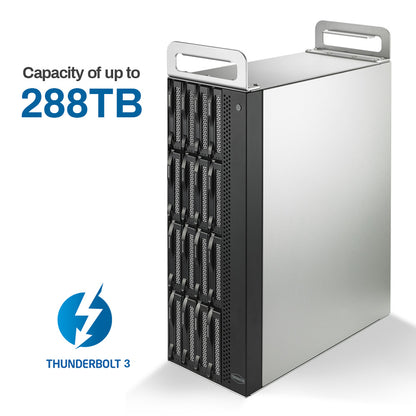

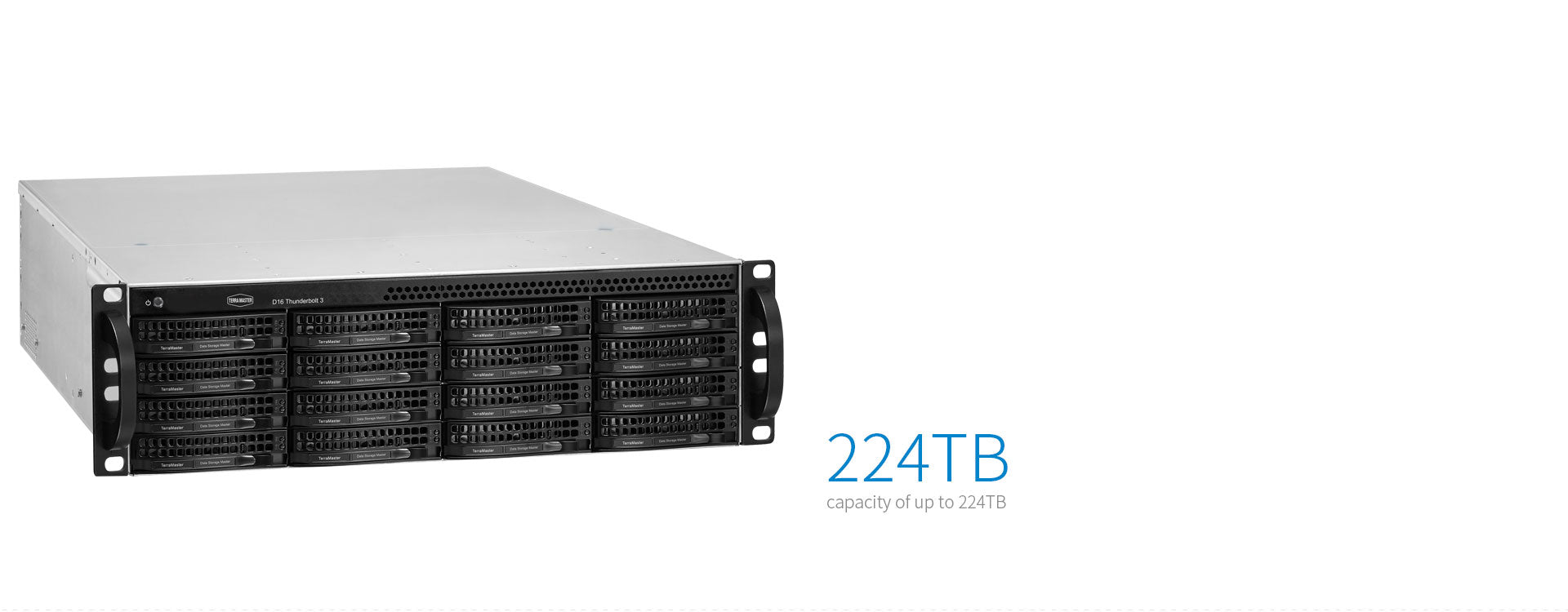

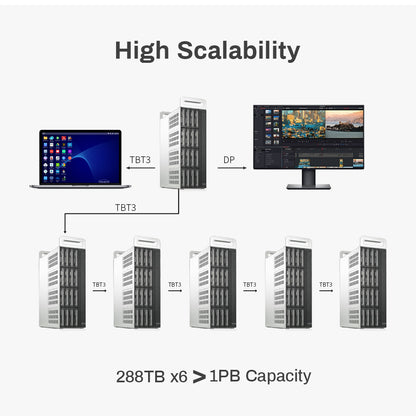

- [Incredible Capacity up to 1PB] Multiple hardware RAID: RAID 0/1/5/6/10/50, JBOD, Single. Support up to 310TB storage capacity (20TB x 16, in RAID 0), hard drives not included, users need to purchase as needed. Support both 3.5” SATA disks and 2.5” SSDs. Other storage devices can be daisy-chained via Thunderbolt 3 – so six linked D16 Thunderbolt 3 units can achieve an enormous 1PB of on-site storage.

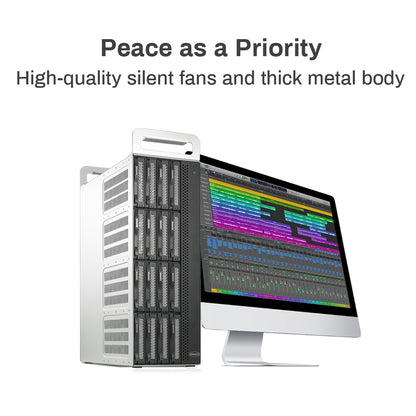

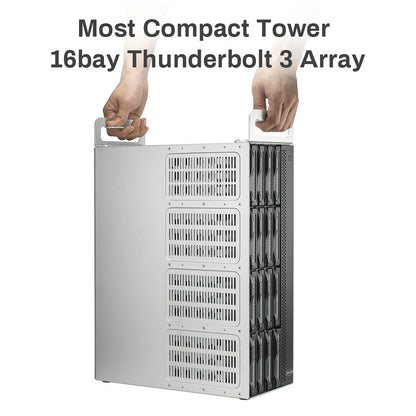

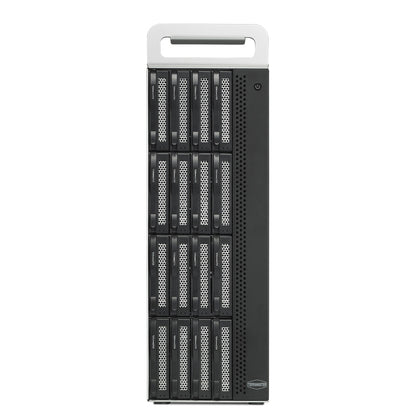

- The D16 is both quiet and compact enough to be placed on a desktop in the working area, with a similar footprint to a typical tower PC. Even under full load, the D16’s high-quality silent fan and specially optimized interior structure help increase the internal air flow of the device to reduce the disk temperature, as well as greatly reducing resonance and noise. D16 has a specially designed handle that makes it easy to carry, facilitating the work of video production teams.

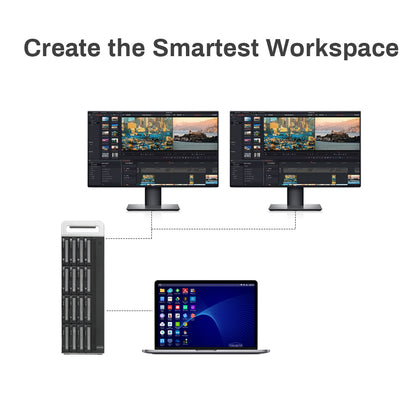

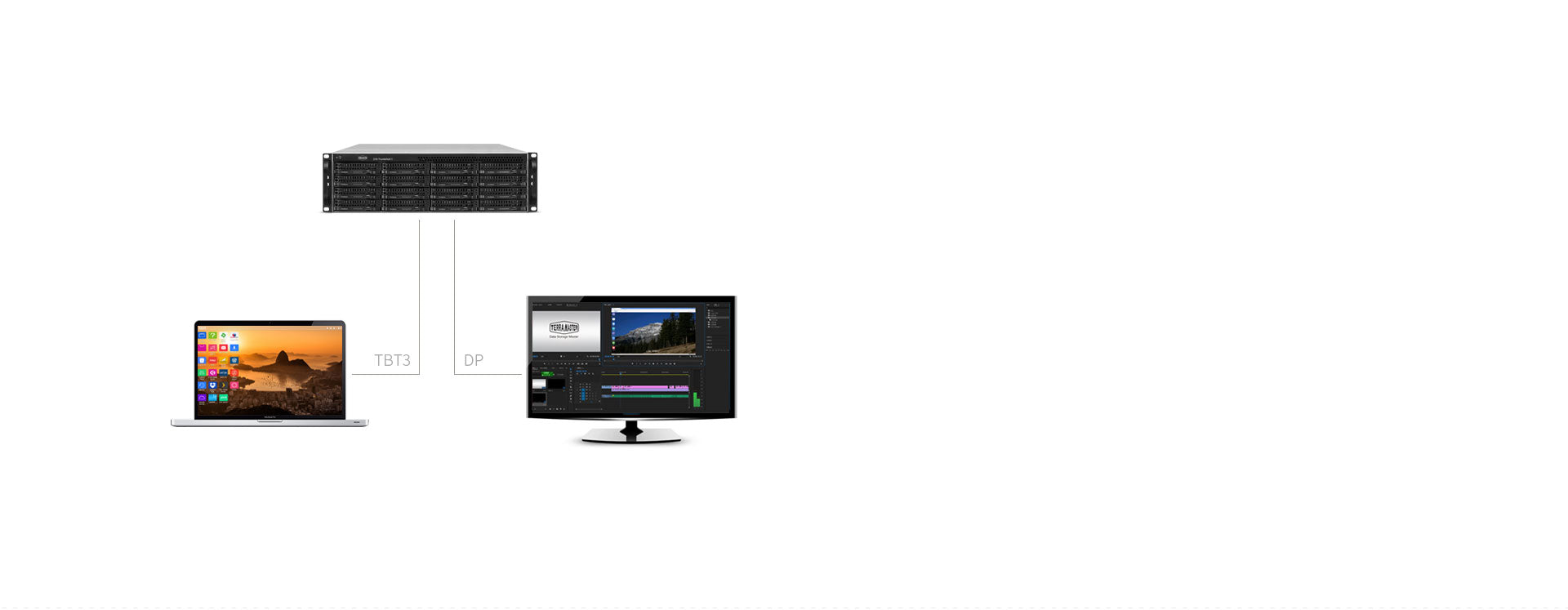

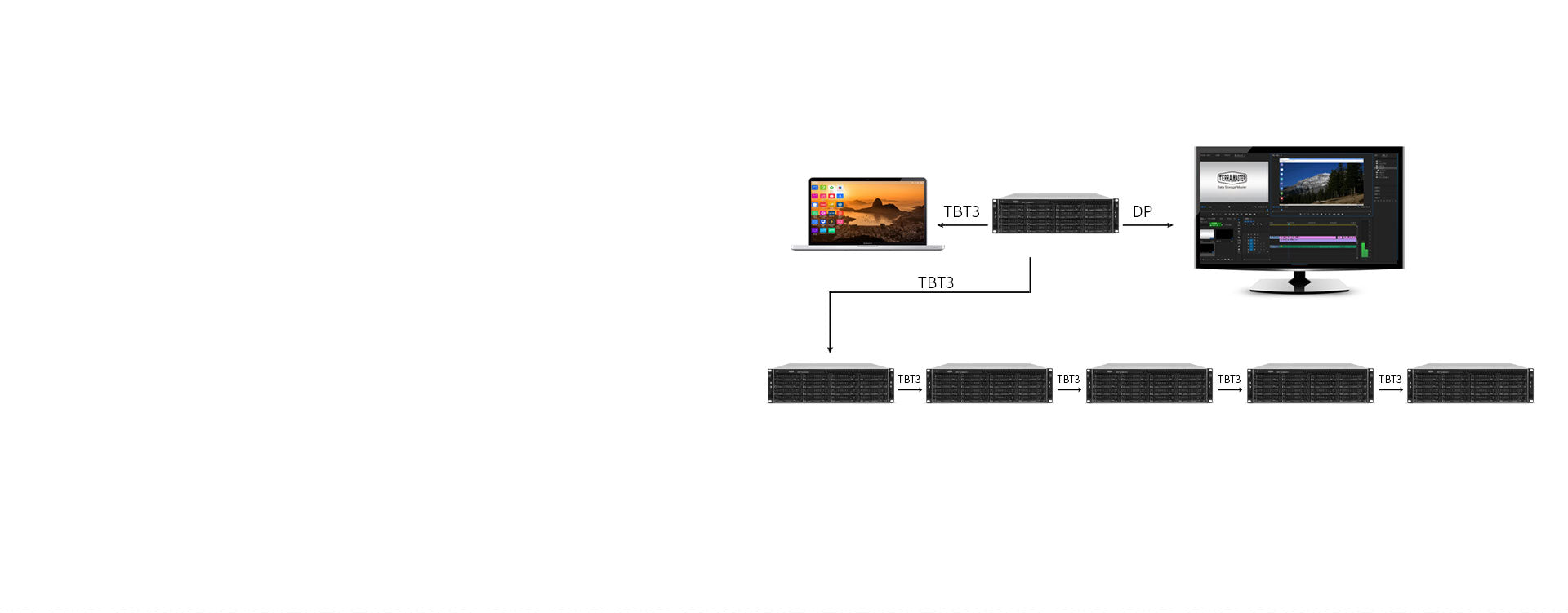

- [One Device with Multifunctions] Capitalizing on the Thunderbolt3 and DP interface, the D16 thunderbolt3 supports multi-screen displays with up to 3 monitors or daisy-chain up to 6 devices to create the smartest workspace. This is an ideal solution for multitaskers, especially when efficiency is the end goal.
Regular price
$3,599.99 USD
Regular price
$3,999.99 USD
Sale price
$3,599.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Specification
D16 Thunderbolt 3 Specification
| Storage | |
| Disk Slot Number | 16 |
| Compatible Disk Types | 3.5" SATA |
| 2.5" SATA HDD | |
| 2.5" SATA SSD | |
| File System | NTFS, APFS, Mac OS,FAT32,EXT4,exFAT |
| Maximum Internal Raw Capacity | 288 TB (18 TB drive x 16) (Capacity will vary along with the RAID type) |
| RAIDs Supported | SINGLE DISK,JBOD,RAID 0,RAID 1,RAID 5,RAID10,RAID 6,RAID 50 Note: Mac 0S computers do not support RAlD online expansion and migration. |
| Hardware RAID | √ |
| RAID Manager Software | √ |
| RAID Manager Software Language | English, Chineses, Japanese |
| RAID Online Expansion | √ |
| RAID Migration | √ |
| RAID Auto-rebuilding | √ |
| Drive Hot Swap | / |
| HDD Sleep | / |
| HDD S.M.A.R.T. Inspection | √ |
| Sector Inspection and Parity Check | √ |
| SSD Cache | √ |
| Daisy Chain | √ |
| HDD NCQ Technology | √ |
| Alert Notice | √ |
| Event Log | √ |

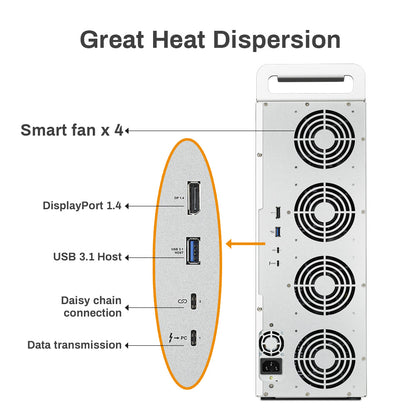

| External Ports | |
| USB | / |
| Thunderbolt Data Transmission | 40Gb Thunderbolt 3 x 1 |
| Thunderbolt Daisy Chain | 40Gb Thunderbolt 3 x 1 |
| USBhost | USB 3.1 Gen2 host (Use to connect USB storage device) |
| DP Interface | DP 1.4 x 1 |
| Power Socket | AC IN 220V |
| Reading/writing Speed (max.) | |
| Reading Speed (max.) |
Read: 2817MB/sec（RAID0, fully loaded with SSD(s)for win 10 );Read: 2786MB/sec（RAID0, fully loaded with WD Ultraster 10T HDD(s) for win 10 ) |
| Writing Speed (max.) |
Write: 2022MB/sec（RAID0, fully loaded with SSD(s) for win 10 );Write: 1550MB/sec（RAID0, fully loaded with WD Ultraster 10T HDD(s) for win 10 ) |
| Appearance | |
| Size (H*W*D) | 348*160*498 mm |
| Packaging Size (H*W*D) | 455*275*616 mm |
| Weight | |
| Others | |
| System fan | 90mm x90mm x 25mm 4PCS |
| Noise Level | 55dB(A) (Noise testing environment: Fully loaded Seagate EXOS 8TB ST8000NM000A hard drive(s) in the reading state) |
| Power Supply | |
| Power Supply | 550W |
| AC Input Voltage | 100V to 240V AC |
| Current Frequency | 50/60 HZ, Single Phase |
| Power Consumption | 230W(Fully loaded Seagate EXOS 8TB ST8000NM000A hard drive(s) in the reading state) |
| Environment Temperature | |
| Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
| Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
| Relative Humidity | 5% ~ 95% RH |
| Supported OS | Mac OS |
| Warranty | 2 years |
| Certificate | CE, FCC, CCC |
| Environment | RoHS compliance |
| Package Contents: | Host unit (x1) |
| Power cord (x1) | |
| Thunderbolt 3 cable (40Gbps) 2 Meter (x1) | |
| Quick Installation Guide (x1) | |
| / | |
| Screws (several) | |
| Limited Warranty Note x 1 |
D16 Thunderbolt 3 Product Documentation
| Name | Description | Operation | Size |
| D16-Thunderbolt 3 | Photo | Download | 0.34MB |
